MIVICE
Battery & Charger
Mivice battery solutions - like all Mivice products - are characterized by a high level of quality. The batteries are assembled in Europe and are already one of the first e-bike batteries to meet the latest update of the EN50604-1 standard. From our battery portfolio you can choose between three different types with different shapes and capacities to fit almost every usecase.
- Made in Europe with high quality control
- New EN50604-1 certification with crush test
- IP66 water- and dustproof rate
- Bluetooth and diagnostic module
- Rosenberger standard connector
Mivice offers two charger types for these batteries - The PJ2 and PJ5 charger. The PJ2 comes with a current output of 2A for normal battery charging, while the PJ5 can generate 5A for a fast-charging option. The PJ5 can operate with all three battery types.

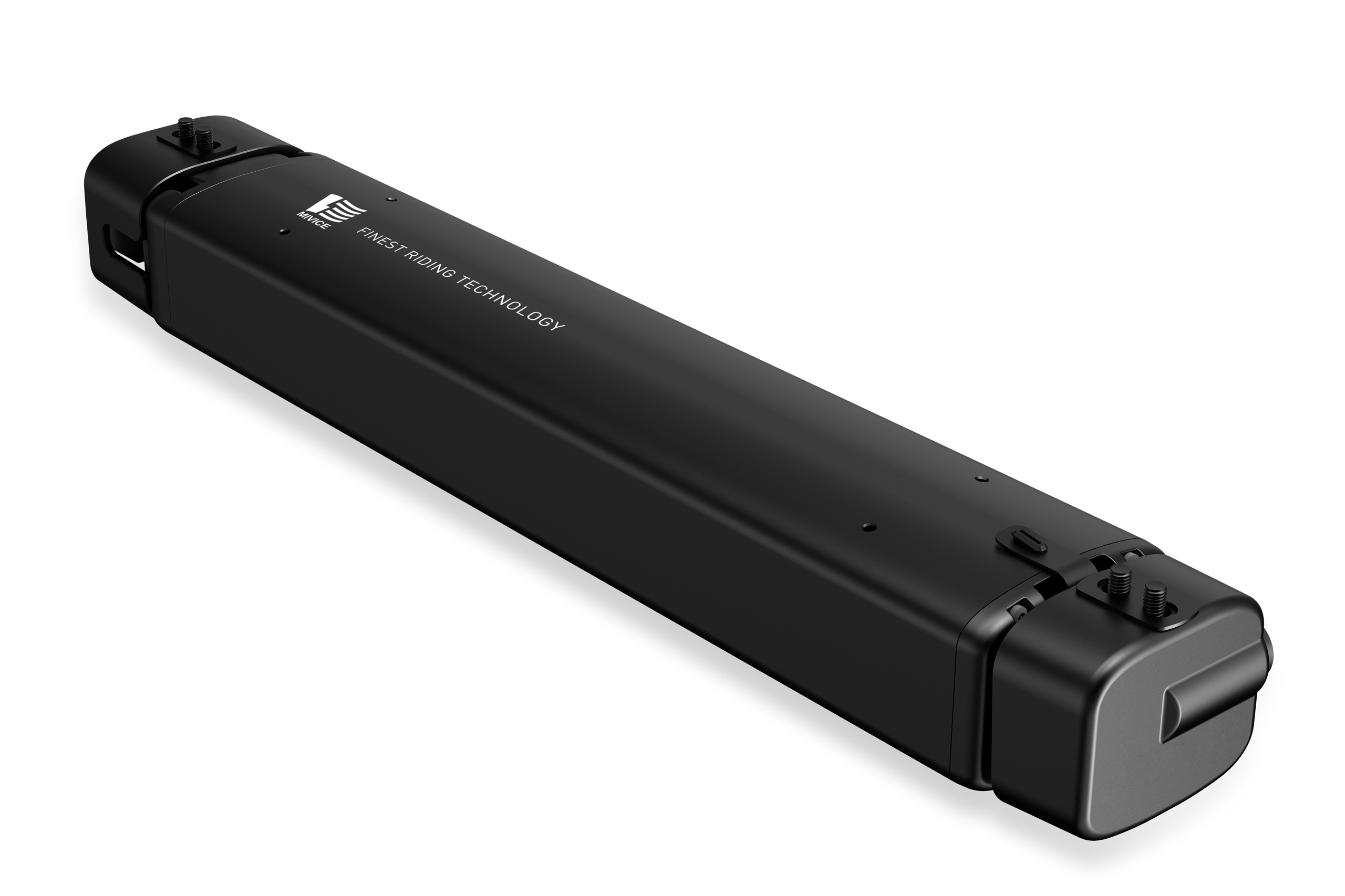

| Model NO. | B540 Battery | B360 Battery | B360s Battery |
|---|---|---|---|
| Battery Type (Fixation) | Removable Intube Battery | Removable Intube Battery | Removable Intube Battery |
| Rated Voltage | 36V | 36V | 36V |
| Capacity | 15Ah | 10Ah | 10Ah |
| Energy Content | 540Wh | 360Wh | 360Wh |
| Weight | 3,1kg | 2,4kg | 2,4kg |

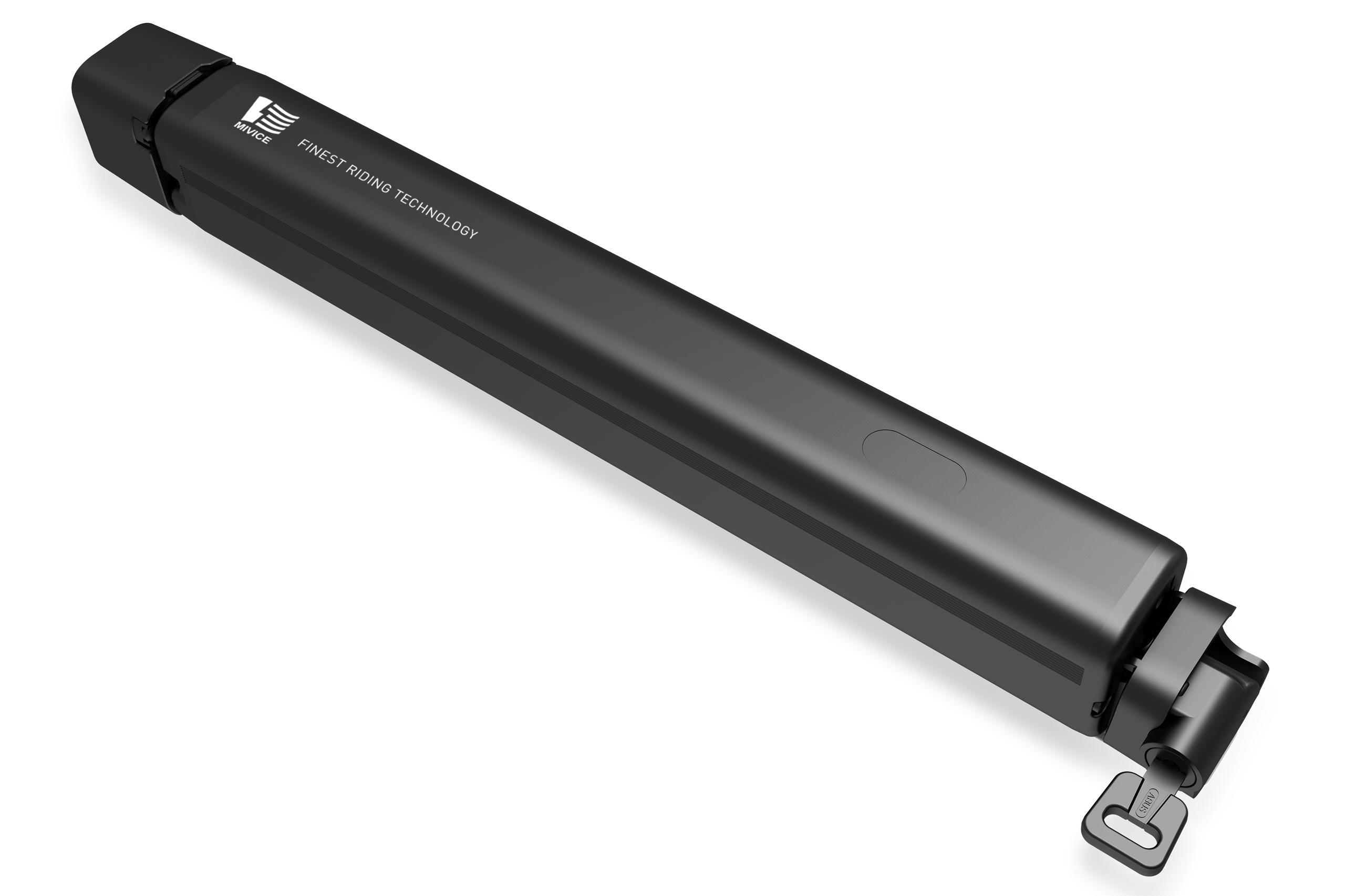

| Dimensions | 410 x 79 x 61 mm | 300 x 79 x 61 mm | 410 x 60 x 52 mm |
| Dimensions with Mounting parts | 490 x 79 x 61 mm | 380 x 79 x 61 mm | 491 x 60 x 52 mm |
| Dual battery option | Yes | No | No |
| Communication Protocol | CAN / UART | CAN / UART | CAN / UART |
| Operating Temperature | 0°C - 45°C (Charge); -10°C - 50°C (Discharge) | 0°C - 45°C (Charge); -10°C - 50°C (Discharge) | 0°C - 45°C (Charge); -10°C - 50°C (Discharge) |
| Storage Temperature | -20°C - 50°C | -20°C - 50°C | -20°C - 50°C |
| Waterproof Grade | IP66 (Mated), IP65 (unmated) | IP66 (Mated), IP65 (unmated) | IP66 (Mated), IP65 (unmated) |
| Max. Charge Current | 5A | 5A | 5A |
| Impact Resistance | IK8 | IK8 | IK8 |
| Certification | EN 50604-1; UN 38.3; IEC 62133-2 | EN 50604-1; UN 38.3; IEC 62133-2 | EN 50604-1; UN 38.3; IEC 62133-2 |
| Features | Bluetooth; On-board diagnostic | Bluetooth; On-board diagnostic | Bluetooth; On-board diagnostic |
Charger
| Model NO. | PJ2 Charger | PJ5 Charger |
|---|---|---|
| Input Voltage | 180 - 240V | 110 - 240V |
| Output Current | 2A (84W) | 5A (210W) |
| Output Voltage | 25 - 42V | 25 - 42V |
| Standby Power | < 1,5W | < 1,5W |
| Power Factor | > 0,95 Efficiency 92% max. | > 0,95 Efficiency 92% max. |
| Charge Connector | Rosenberger | Rosenberger |
| Weight | 288g | 934g |
| Dimensions | 143 x 71 x 41,5 mm | 183 x 89 x 50 mm |
| Indicator | LED | LED |
| Certifications | EN 55015; EN 64000-3; IEC 60335-1; IEC 60335-2-29 | EN 55015; EN 64000-3;IEC 60335-1; IEC 60335-2-29 |
