HMI

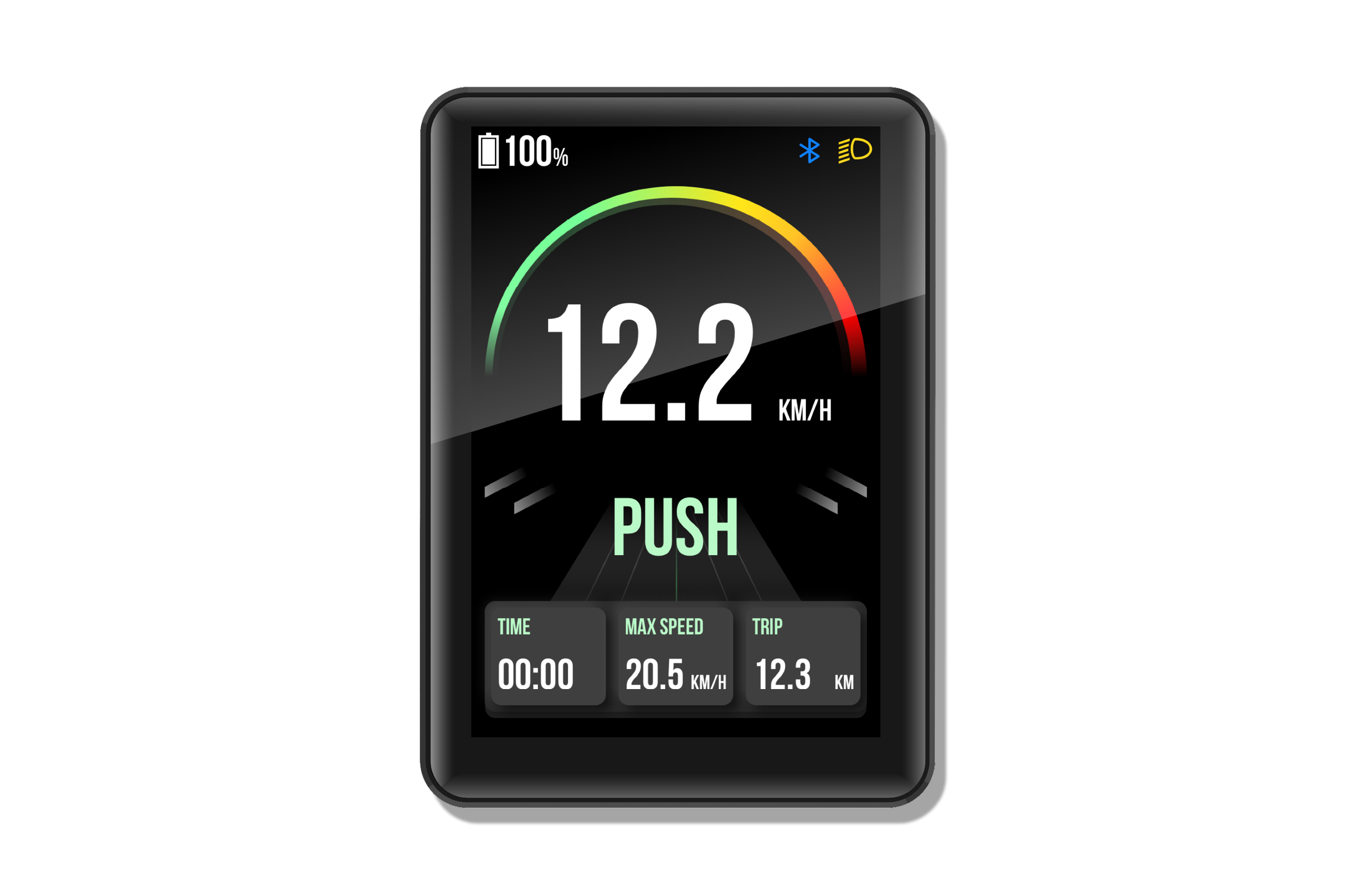

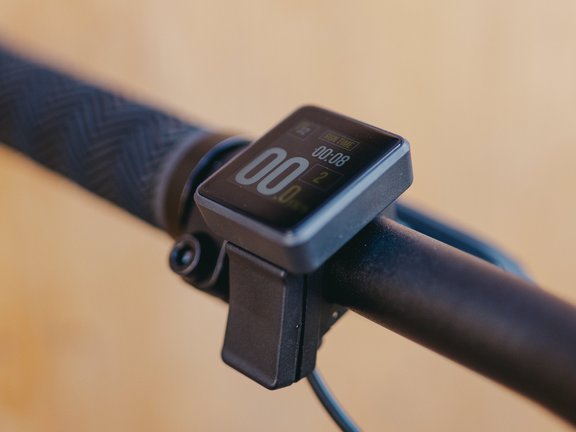

Also with our displays we work with the highest quality requirements in connection with a good usability, visibility as well as robust, resistant materials. We offer 2 variants here: A compact and very easy to use unit directly on the handlebars, as well as a larger multifunctional display placed centrally and highly visible. The right display for each type of user.
- Product screw pre-locking function, better installation, more flexible adjustment, built-in soft rubber pad, make the product firmer and not easy to fall.
- Mechanical Keys, High Elasticity
- Large mechanical keys, high elasticity, and better operating feel.
- Use higher quality materials to make the product last longer. IP67 waterproof, so you can ride rain or shine.
- Bluetooth 5.1 system upgrade, automatic sleep function.
- Using glass mirror surface, high transparency and better texture. Side metal buttons, diamond bevel cut, make the product more valuable.
| Model NO. | D101 | D201 |
|---|---|---|
| Version | D101c CANBUS Version / D101u UART Version | D201c CANBUS Version / D201u UART Version |
| Material | ABS+PA66+PMMA | ABS+PA66+PMMA |
| Size | L34.80MM 1.44 TFT | 3.5 inch TFT |
| Power | DC 24V/36V/48V | DC 24V/36V/48V |
| Power supply starting current | -- | 24V﹤50mA, 36V﹤40mA, 48V﹤30mA |
| Rated working current | 8mA | -- |
| Shutdown leakage current | <1uA | <1uA |
| Screen Type | LED | LED |
| Protocol | UART/ CAN-BUS (Optional) | UART/ CAN-BUS (Optional) |
| Service temperature | -20°C~60°C | -20°C~60°C |
| Storage temperature | -30°C~65°C | -30°C~80°C |
| Waterproof | IP67 | IP67 |
| Equipped charging port | -- | Type-C |
| Function | Bluetooth/Four buttons/Speed/Mileage display/Error alarm/Battery indicator/Digital power gear etc. | Navigation/Bluetooth/Power shift function/Speed/Health data/Clock/Error alarm/Battery indicator/Digital power gear etc. |
