MIVICE

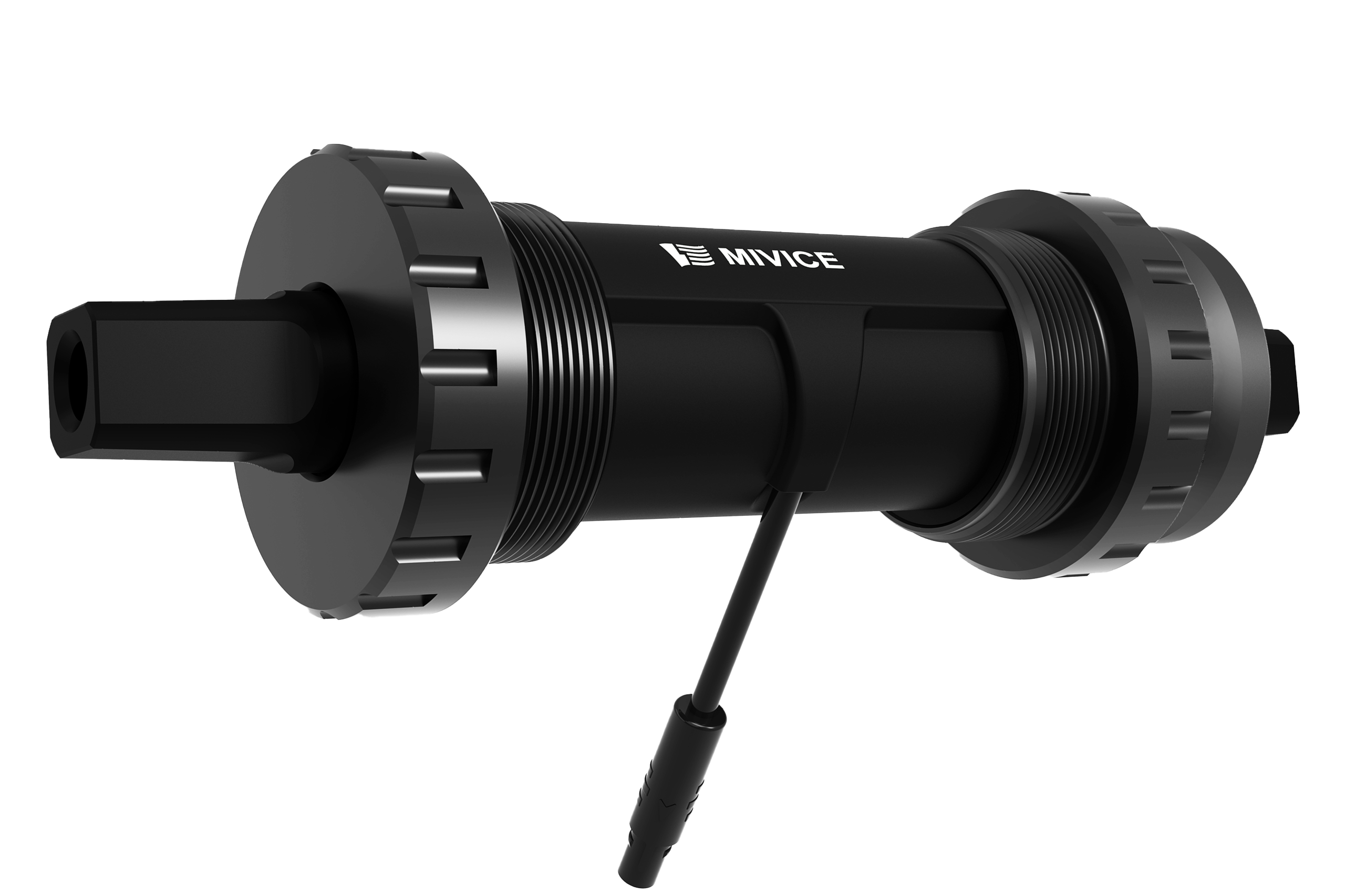

Torque Sensor
Our patented Torque Sensor makes us truly distinctive - it detects the best possible dosage in conjunction with the force applied to the pedal as well as the respective driving situation almost perfectly. Thus, cycling with our systems comes very close to natural biking - here we are particularly proud of what we have developed. Finest riding technology.
- Non-contact sensing technology exclusive design by MIVICE
- Ultra-high tolerance and extremely low sensitivity
- Due to our high quality standard and the fine sensory we have been able to establish a product, which is reflected in a very strong popularity in the market.
| Parameters | S200 | S200H |
|---|---|---|
| Power Supply (V) | 5±0.5 | 5±0.5 |
| Power Consumption (W) | <0.15 | <0.15 |
| Torque Measurement Range (Nm) | 0~100 Can Be Customized | 0~100 Can Be Customized |
| Max Load (Nm) | 250 | 250 |
| Cadence Detection | TTL | TLL |
| Torque Signal | Analog | Analog |
| Standards | EN 14764-2005 ISO 4210-2010 | EN 14764-2005 ISO 4210-2023 |
| Cup Threads | BC 1.37*24 | No Thread / Pressfit |
| Bottom Bracket Width (mm) | 68 Or 73 | 86 |
| Operating Temperature (°C) | -20~70 | -20~70 |
| Storage Temperature (°C) | -10~40 | -10~40 |
| IP level for Electronic parts | IP67 | IP67 |
| Neutral salt spray test (bearings mounting and sleeve connecting surface is not included) | Non-Bearing And Grinding Parts 96H | 48H |
| Certification | EN 13849 | EN 13849 |
| Appearance color | Black/Silver Torque Sleeve | Black |
| Shaft color | Black/Silver Bottom Bracket | Silver |
| Measurement | Double-side | Single-side |
| Shaft type | Square | Mivice integrated |
| Crankset | not included | Crank length 170mm Pressfit BB86 BCD 110mm / 4-hole (assym.) |
